I. System Overview: The Core Driving Force of Sandblasting Technology
In modern sandblasting technology, an abrasive recovery system is far more than a mere equipment configuration; it is a core competitive advantage that dictates production efficiency and economic viability. A high-performing recovery system ensures the continuity of blasting operations and directly determines the upper limit of workpiece surface treatment quality.
At Wuxi Büller Machinery Co., Ltd., we have introduced a fully automated “Scraper Abrasive Recovery Floor” solution. This innovation completely disrupts the traditional manual cleaning model, marking a fundamental leap from manual to fully automated recovery. It drastically reduces non-productive time, making the entire workflow smoother and highly efficient.
II. Scraper Abrasive Recovery Floor: The Foundation of Continuous Operation
As the starting point of the entire recovery process, the Disa scraper recovery floor automatically collects spent abrasives, ensuring uninterrupted, long-duration sandblasting operations.

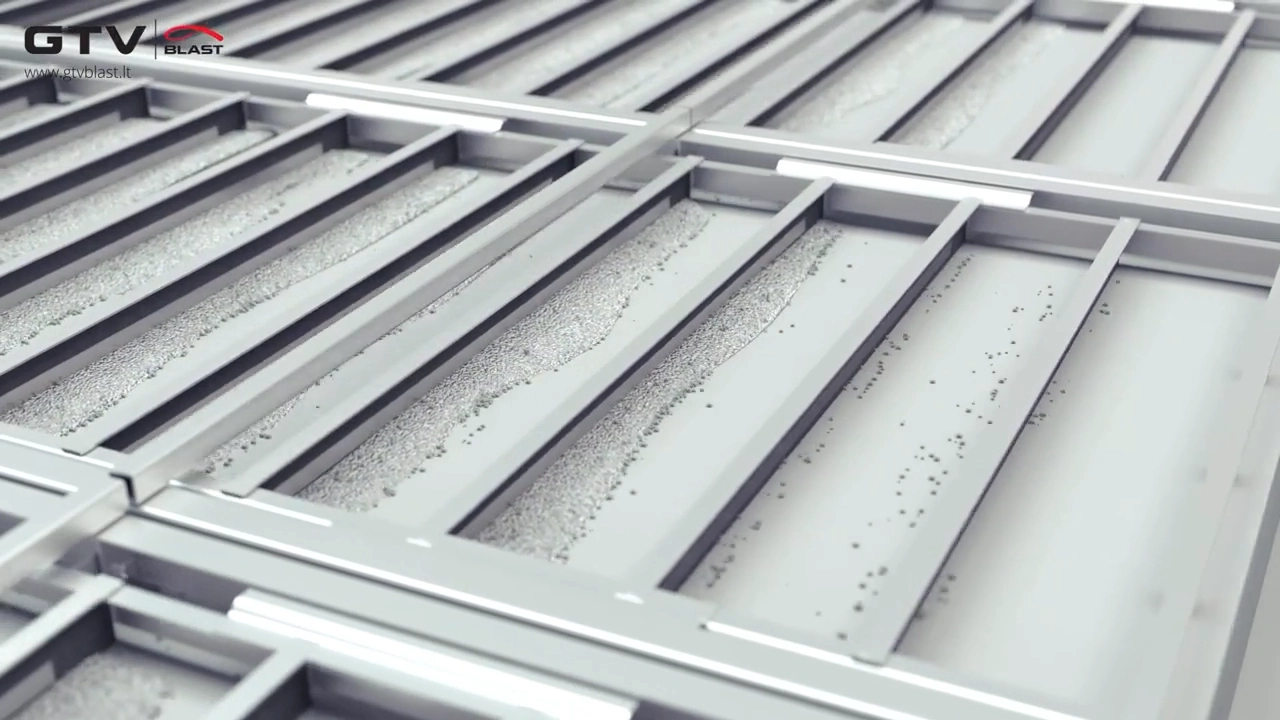

Smart Synergy of Flexible Scrapers and Combs: Flexible scraper blades are strategically spaced within the channels, resting against galvanized steel combs. During the reciprocating motion, the combs provide the thrust to push the abrasives into transverse channels, ultimately conveying them to the cleaning unit. When encountering large debris, the flexible blades elastically deflect, effectively preventing the mechanism from jamming or sustaining damage, thereby guaranteeing long-term reliability under high-intensity operating conditions.
Pre-Cleaning and Diversion Design: The abrasive cleaning unit integrates a vibrating screen and an air-wash separator. This pre-diversion design is critical to system reliability—it directs dust to the dust collector while routing spent abrasives and large debris to a separate collection bin. This prevents premature wear on the filter cartridges or bags caused by direct impurity entry, significantly reducing overall maintenance costs.
III. Dynamic Abrasive Classifier: Precision Control Over Surface Quality
Fluctuations in abrasive grain size directly impact surface roughness profiles and cleaning efficiency. As the core component of the grading system, the dynamic abrasive classifier is designed to guarantee exceptional consistency in abrasive quality throughout the entire operation.
Operators can precisely control the minimum particle size retained in the system by adjusting the negative pressure suction (higher suction removes larger particles). This classifier works in synergy with the air-wash unit in the cleaning system: the air-wash unit removes fine dust, while the dynamic classifier eliminates oversized particles. Their perfect coordination ensures that the abrasives entering the storage hopper consistently meet stringent sandblasting standards in both grain size and cleanliness.
IV. Fast Recovery Elevator: Balancing High Capacity with Premium Quality
Designed specifically for high-volume, continuous operations, this elevator achieves a maximum processing rate of up to 30 tonnes per hour and is equipped with a dynamic separator, vibrating screen, and air-wash unit.
Even at extreme processing speeds, the system maintains outstanding regenerative treatment results without sacrificing classification accuracy for the sake of speed. Its refined design not only maximizes throughput but also minimizes dust accumulation inside the blast room, making it the ideal choice for high-capacity foundries operating multiple shifts.
V. Smart Storage Hopper & Auto-Refill System: Seamless Material Supply
Cleaned abrasives are delivered to a custom-sized storage hopper. The capacity of the hopper is determined by a core principle: ensuring that the maximum-sized workpiece completes its entire processing cycle before the abrasive recovery operation is initiated, thereby preventing interference between the cleaning and blasting processes.
The system features a highly intelligent auto-refill mechanism: when the blast pot is emptied or the operator releases the safety deadman switch (stopping the operation), the equipment automatically replenishes clean abrasives from the overhead hopper. This design completely eliminates manual labor, prevents operational downtime caused by abrasive starvation, and significantly reduces operator fatigue.
VI. Summary of Core System Advantages
This automated abrasive recovery system constructs a flawless closed-loop process through five key stages: Automatic collection by the scraper floor → High-efficiency transfer via the elevator → Precision separation via the vibrating screen and air-wash unit → Accurate grain size control by the dynamic classifier → Smart refilling from the clean hopper.
The entire system achieves full automation in recovery, separation, cleaning, classification, and refilling, boasting an abrasive recovery rate of over 95%. It not only significantly enhances the continuity and economic efficiency of sandblasting operations but also provides a solid guarantee for the consistency and stability of workpiece surface treatment.
